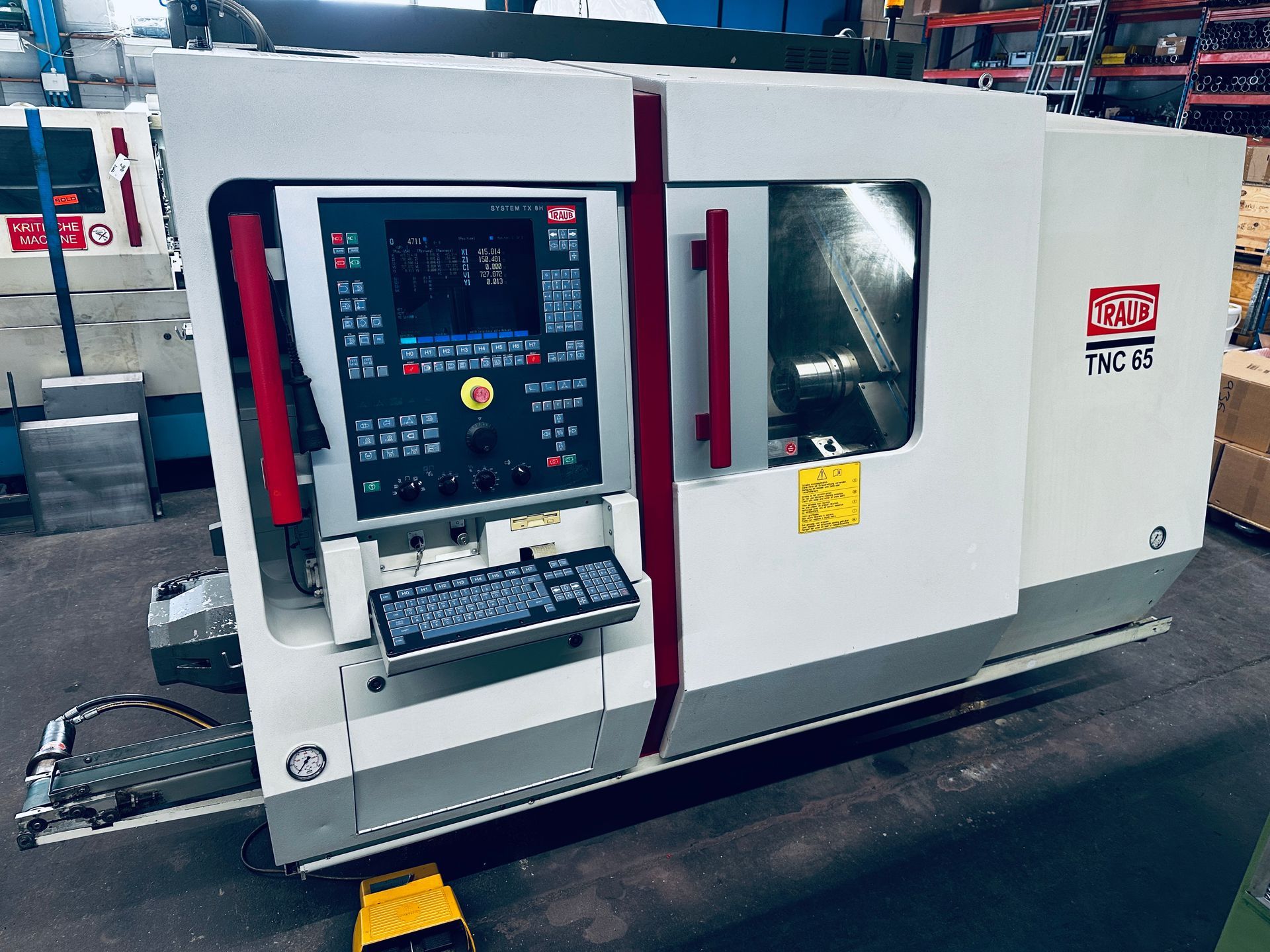

Traub CNC Drehmaschine TNC65 DGY, TX8H, Bj. 2003, teilüberholt

Traub CNC Turning Centre TNC65DGY, TX8H control system, partial overhaul • Traub TX8H Control system. • Year of Manufacture 2003 • Twin turrets – 10 Station, 30VDI. • Twin spindles with A6 din taper. • Full ‘Y’ axis on upper turret. • Maximum 4000RPM on both spindles. • ‘C’ axis on Main and Opposed spindle. • Documentation. • Traub polyform software for easy programming of complex milled profiles using the combined ‘C’ and ‘X’ axis movements for simulated ‘Y’ axis profile generating from the lower turret. • External coolant tank and coolant pumps. • Main & Opposite spindle equipped Hainbuch 65BZI type collet chucks for Ø65mm maximum bar. • Driven tools – both turrets. Max. 5600 RPM. • Parts ejector with through opposite spindle coolant. • Parts gripper. • ATC Tool measuring system. • Finished parts conveyor. • LNS Servo III short bar loading magazine. • Swarf conveyor.
